What You'll Need Before Installing Path Lights in STL

Installing path lights in STL starts with one principle: light the walkway, not the whole yard. Path lighting is a low-voltage system using a transformer, buried cable, and LED fixtures to guide people safely after dark. At Lightscape Design & Installation, our projects that last all start with the same prep work.

Before you dig, gather these items:

• Low-voltage transformer sized to your fixture count
• 12-gauge or 14-gauge direct-burial cable
• LED path fixtures with ground stakes
• Wire connectors rated for underground use
• A timer or photocell for automatic control
• Landscape flags or spray paint for marking
• A shovel, trencher, or edging tool
• Wire strippers and a voltage meter

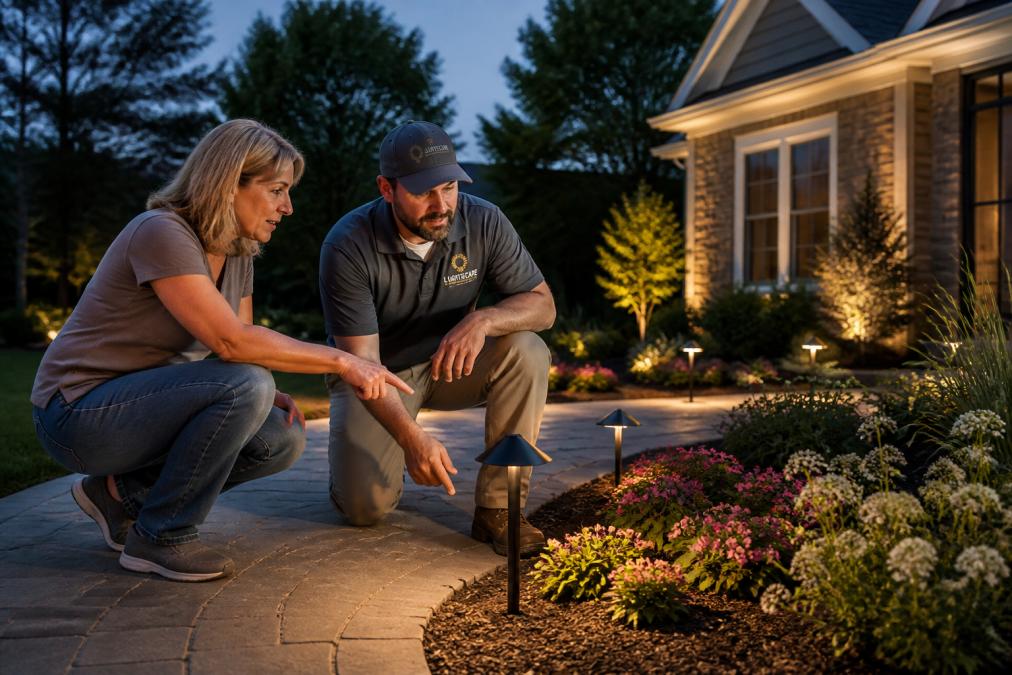

Step 1: Plan Your Layout and Mark Fixture Placement

Good layout starts on paper. Sketch your walkway, patio edges, and any hardscape you want to frame, then flag each fixture spot to see the plan at dusk.

Step 2: How to Calculate Transformer Wattage for Landscape Lighting Layout

Transformer wattage is the total power your fixtures draw plus a safety margin. Add up every fixture's wattage, then size the transformer so that total stays at or below 80% of its capacity, headroom that protects the unit and leaves room to add a fixture later.

Here's the math in plain terms:

• Add fixture wattage: 12 fixtures at 4 watts each = 48 watts
• Apply the 80% rule: 48 ÷ 0.8 = 60 watts minimum
• Choose the next size up: a 75-watt transformer covers it

Step 3: Landscape Lighting Wire Burial Depth Requirements

Landscape lighting wire burial depth requirements are straightforward: bury direct-burial cable 6 to 12 inches deep, or run it through conduit under a driveway, patio, or high-traffic area. Deeper is better where lawn equipment or foot traffic passes over the line.

A few practical rules:

• Keep runs under 100 feet per cable path when possible
• Use 12-gauge wire for longer runs to limit voltage drop
• Leave slack at each fixture for future adjustments
• Protect cable with conduit under hardscape and driveways

Step 4: Connect Fixtures and Test the System

Connect each fixture to the main cable with a waterproof connector, then test before you backfill, testing first saves digging up a bad connection later.

Follow this order:

1. Run the main cable from the transformer to the farthest fixture
2. Attach each fixture with an underground-rated connector
3. Connect the cable to the transformer terminals
4. Plug in the transformer and switch it on
5. Check every fixture for even brightness

Step 5: Aim Fixtures and Set Controls

Aiming is where a good system becomes great. Point each fixture so light lands on the walkway or the feature you want to highlight, not into someone's eyes. Shield the bulb with your hand and check from the street.

Then set your controls:

• Set the photocell so lights come on at dusk
• Add a timer to shut them off late at night
• Group fixtures into zones if you want separate control
• Test the schedule for a week and adjust

DIY vs Professional Path Light Installation in STL

Here is a breakdown, including the local factors that decide the answer.

What DIY actually costs

A typical 10- to 12-fixture low-voltage LED path system requires materials such as a transformer, 12- or 14-gauge direct-burial cable, fixtures, waterproof connectors, and a photocell or timer. Tools like a manual trencher or a voltage meter may also be needed.

What professional installation actually costs

Professional low-voltage path lighting installs are typically quoted per fixture or per project. Pricing depends on factors like run length, trenching difficulty, and fixture quality. Complex layouts with conduit under driveways, zone controls, or smart-app integration may affect the overall cost. We recommend asking for a line-item quote separating fixtures, transformer, wire, and labor.

The local factors that tip the decision

Soil and climate decide DIY vs pro here more than anything else.

Call to schedule a consultation →

• Heavy clay soil. Much of the metro sits on dense clay that drains slowly and shrinks and swells with moisture. Hand-trenching clay is slow and punishing; a trencher or pro crew with the right blade saves hours. Clay also holds water against cable and connectors, so sealed, underground-rated connections matter more here than in sandy regions.
• Freeze-thaw cycles. Repeated freeze-thaw can heave shallow cable and tilt stakes. Burying at the deeper end of the 6- to 12-inch range and tamping backfill in lifts reduces heaving, standard practice for a pro, but something a first-time DIYer often learns after the first spring.
• Humidity and summer storms. High summer humidity and heavy convective storms drive water into poorly sealed connectors. This is the single most common cause of flickering or dead fixtures in the region.
• Mature tree roots and irrigation. Older neighborhoods have root systems and irrigation lines crisscrossing beds. A pro crew knows how to route around them; a DIYer with a trencher can cut an irrigation line in seconds.

When DIY wins

• A short, straight run under about 50 feet on flat, workable ground
• You already own the tools or can borrow them
• You enjoy the work and want to learn the system for future maintenance
• The layout is simple enough that a miscalculation is cheap to fix

When professional wins

• Curved or multi-zone layouts that need design judgment
• Clay soil, long runs, or any hardscape crossing that needs conduit
• You want a warranty on labor and materials
• The system will be expanded later and you want the transformer and wire sized correctly from day one

The warranty question

DIY systems carry whatever warranty the fixture and transformer manufacturers offer, but no labor coverage, if a connection fails, you're back in the trench. Professional installs commonly bundle a workmanship warranty on top of manufacturer coverage.

Common Mistakes to Avoid

Most path lighting failures trace back to a handful of avoidable errors, a few of them amplified here by clay soil, freeze-thaw cycles, and summer humidity. Here is what goes wrong and how to catch it before you backfill.

Undersizing the transformer

Running a transformer near 100% of its rated load makes it run hot, trip on thermal protection, and shorten its own life. The 80% rule exists for a reason: a 60-watt load belongs on a 75-watt transformer, not a 60-watt one. The mistake usually shows up as a transformer that works fine in mild weather and starts tripping on the hottest afternoons of summer.

Burying cable too shallow

Six inches is the floor, not the target. In clay soil that heaves through freeze-thaw, a cable at six inches can be pushed toward the surface and nicked by a shovel or edger the following spring. Deeper burial in the 8- to 12-inch range, with backfill tamped in lifts rather than dumped in one pass, holds the line in place.

Using indoor-rated connectors underground

This is the number one cause of flickering and dead fixtures in humid summer climates. Indoor wire nuts and crimp connectors aren't sealed against moisture, and clay soil holds water against them for days after a storm. Underground-rated, gel-filled or heat-shrink connectors cost a little more and eliminate the problem.

Spacing fixtures by habit instead of by beam spread

The old "every 8 feet" rule ignores beam angle and brightness. A narrow-beam fixture at 8-foot spacing leaves dark gaps; a wide-beam fixture washes the walkway into a runway. Spacing should follow beam spread and the look you want, wider for a clean, sparse feel, tighter for brighter, busier coverage.

Aiming lights into eyes, traffic, or a neighbor's window

Path lights are meant to light the ground plane, not the viewer. A fixture aimed slightly up or outward throws glare onto the street, into oncoming headlights, or across a property line. Shield the bulb with your hand and check the aim from the street and a neighbor's vantage point.

Skipping the 811 call before digging

This is the most expensive shortcut in the trade. Hitting a gas, water, or irrigation line turns a weekend project into a repair bill and a safety hazard. The call is free and scheduling takes a few business days, so make it the first step, not the last.

Forgetting voltage drop on long runs

Voltage drop is the quiet killer of low-voltage systems. A run past roughly 100 feet, or a heavy fixture load on thin wire, leaves the last fixtures visibly dim. The fix is thicker wire, 12-gauge instead of 14-gauge, or splitting the run into two shorter legs from the transformer.

Not leaving slack at each fixture

Fixtures get bumped, stakes shift, and layouts change. A tight connection with no slack means any adjustment requires splicing in new wire. Leaving a foot or two of slack coiled at each fixture costs nothing and saves a repair later.

Path lighting rewards patience. Get the layout, wattage, and burial depth right, and your walkway stays safe and inviting for years. That's exactly the work Lightscape Design & Installation handles every day, from complimentary on-site consultations to final aiming. Our USA-made fixtures and integrated LED technology come with a 20-year warranty, and our local team is licensed, bonded, and insured. Call to schedule a consultation and light your property the right way.
